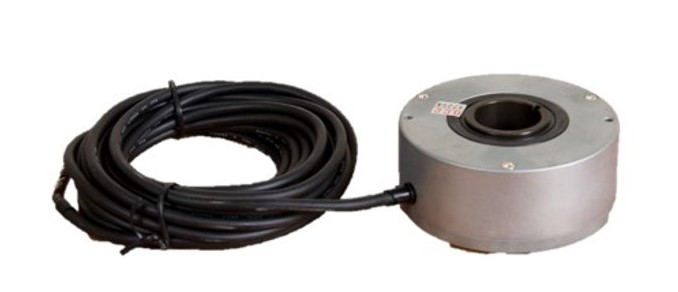

Encoder 1024 SA60
ADD TO CART
Product Specifications
Encoder can tell the controller when the car has reached the correct floor, in the correct position. That is, encoder motion feedback to the elevator's controller ensures that elevator doors open level with the floor. Without encoders, you might find yourself climbing in or out of an elevator, rather than simply walking out onto a level floor.
| Electrical Specification | |
| Detection System |
Incremental |
| Output Wave | Square Wave |
| Standard No. of Pulse | 1024 |
| Output Phase | AB Phase |
| Electronics | Push Pull |
| Power Supply | DC 8~26V |
| Current Consumption | ≤ 60 mA |
| Output Capacity | Sync. Current: 20 mA, Residual Voltage: 0.5V or less |
| Max. Response | 50K Hz |
| Phase Different | A, B Phase different 90° ± 45° (T/4±T/8) |
| Wave from Rise/Fall | 2 μs or less |
| Polarity | Against Reverse Protection |
| Mechnical Specification | |
| Hollow Shaft Diameter | 30 mm |
| Shaft Loading | Axial: 1 KG, Radial: 2 KG |
| Starting Torque (at 25°C) | ≤ 600 gf-cm |
| Max. Speed | 2,500 rpm |
| Vibration | 10 KG (10±1, 500 Hz) |
| Shock | 20g per 11ms |
| Cable | ⌀5.4, 100cm long |
| Weight | ≤ 1200g |
| Environment Specfication | |
| Operating Tempt. | -10°C ~ 60°C, RH 35% ~ 90% (No Condensation) |
| Storage Tempt. | -20°C ~ 80°C |
| Protection | IP50: Dust Proof |
