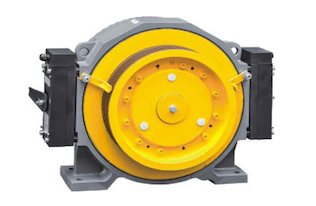

Traction Machine GTW9S

ADD TO CART

Product Specifications



Among all type, traction elevators are the most common type of elevators. Elevator cars are pulled up by means of rolling steel ropes over a deeply grooved pulley, commonly called a sheave in the industry. The weight of the car is balanced by a counterweight on the opposite side. The machine that is used majorly for this pulling operation is called Traction Machine and it is normally located at the top of the elevator shaft.



This specifc model variation is Gearless Traction Machine.



Voltage 380V
Suspension 2:1
Max. Static Load 3000 KG
Brake DC110V 2x0.88A
Weight 350 KG





Spec Load (KG) Lift Speed (m/s) Height (m) Sheave Diam.(mm) Rated Speed (rpm) Power (kW) Pole
GTW9S-61P0 630 1 ≤80 ⌀400 96 4.2 32
GTW9S-61P5 1.5 144 6.3
GTW9S-61P6 1.6 153 6.7
GTW9S-61P7 1.75 167 7.3
GTW9S-62P0 2 192 8.4
GTW9S-81P0 800 1 96 5.3
GTW9S-81P5 1.5 144 8
GTW9S-81P6 1.6 153 8.5
GTW9S-81P7 1.75 167 9.3
GTW9S-82P0 2 192 10.7
GTW9S-101P0 1000 1 96 6.5
GTW9S-101P5 1.5 144 9.8
GTW9S-101P6 1.6 153 10.4
GTW9S-101P7 1.75 167 11.4
GTW9S-102P0 2 192 13.1
GTW9S-111P0 1150 1 112 7.6
GTW9S-111P5 1.5 168 11.4
GTW9S-111P6 1.6 180 12.3
GTW9S-111P7 1.75 198 13.5
GTW9S-112P0 2 225 15.3
