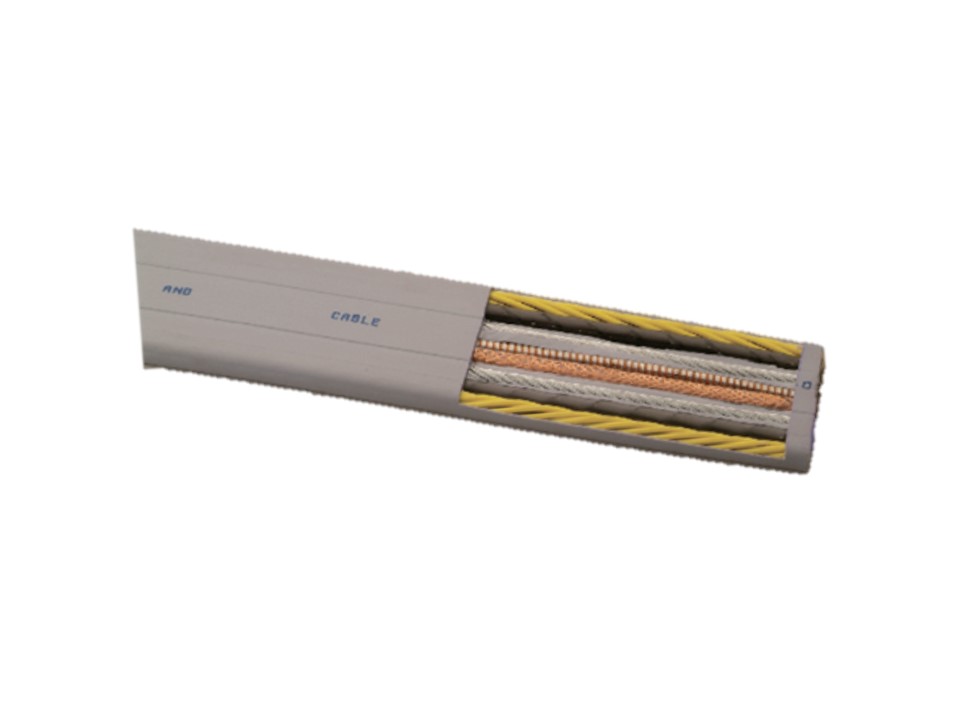

Travelling Cable TVVB+CCTV
ADD TO CART
Product Specifications
Traveling cable (either flat type or circular-liked type) is a cable that is used for power transmission to the elevator car, and communication between the controller, and the elevator car. The cable is usually hangs from the elevator car.
| Traveling Cable TVVB 36x0.75 mm sq. + CCTV HIGHSPEED |
Traveling Cable TVVB 36x0.75 mm sq. + CCTV |
|
| Type Voltage Class | TVVB(G) 300/500V | TVVB 300/500V |
| Cores x Section | 36x0.75 + 2x2Px0.75 | 24x0.75 + 2x2Px0.75 |
| Type of Conductor | 0.4 | 0.4 |
| E1 | 2 | 2 |
| E2 | 1.2 | 1.2 |
| E3 | 1.4 | 1.4 |
| Insulation @ 70°C | ≥ 0.011 | ≥ 0.011 |
| Conductor @ 20°C | ≤26.0 | ≤26.0 |
| Size | 57.0x9.5 | 57.0x9.5 |
